Run GLM-AED diagnostics
Usage
run_glm_aed_diagnostics(
aeme,
model,
groups = NULL,
depth_collapse = "mean",
plot = TRUE,
use_bounds = TRUE,
print_table = TRUE
)Arguments
- model
Model name. One of "gotm_wet", "glm_aed", or "dy_cd".
- groups
character vector selecting catalogue entries. Accepts:
catalogue entry names (e.g. "nitrogen_state"),
element codes ("O","N","P","Phy"),
types ("state","process"). Default NULL = all entries.
- depth_collapse
"mean", "surface" or "max" — reduce 3D variables
- plot

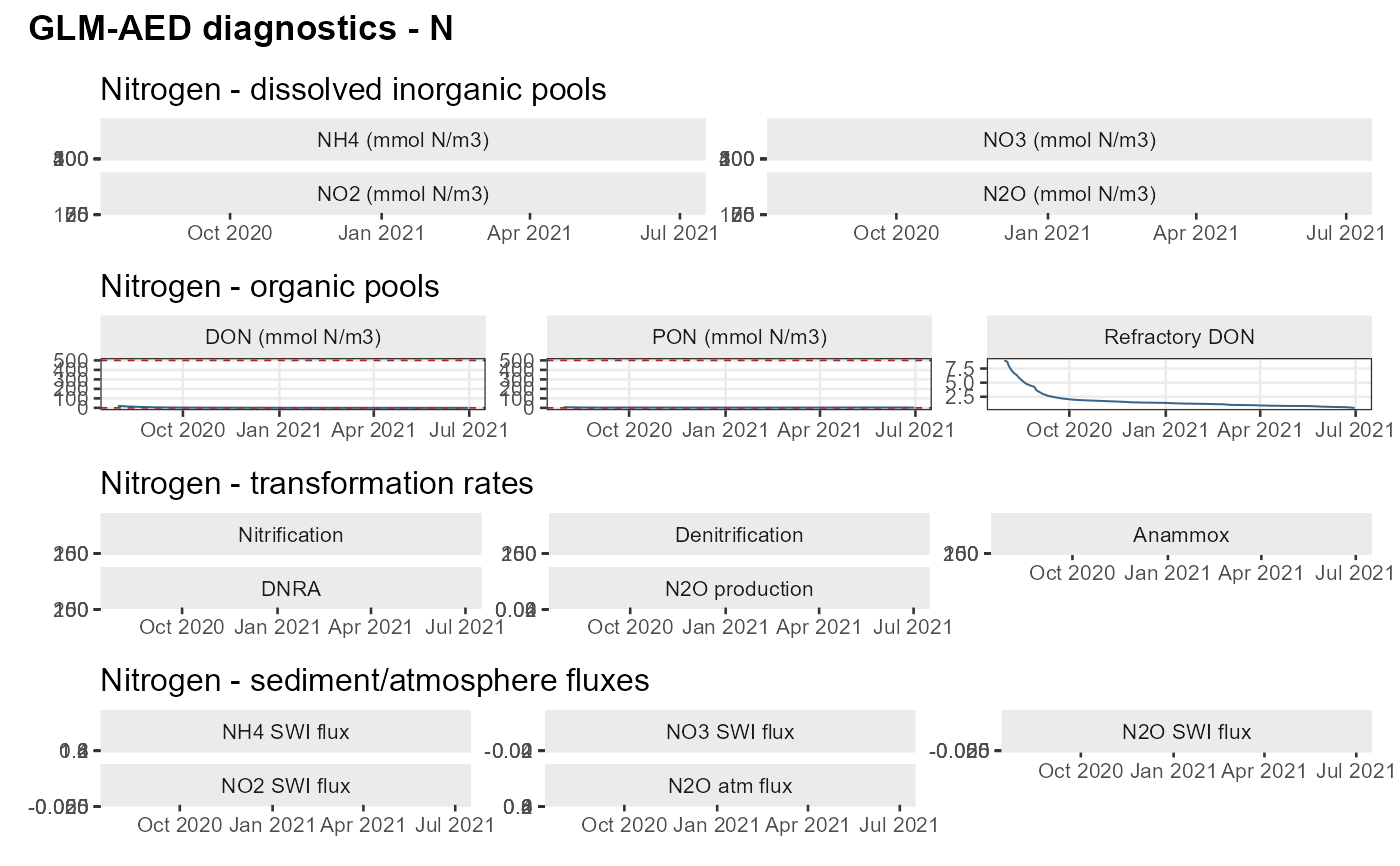

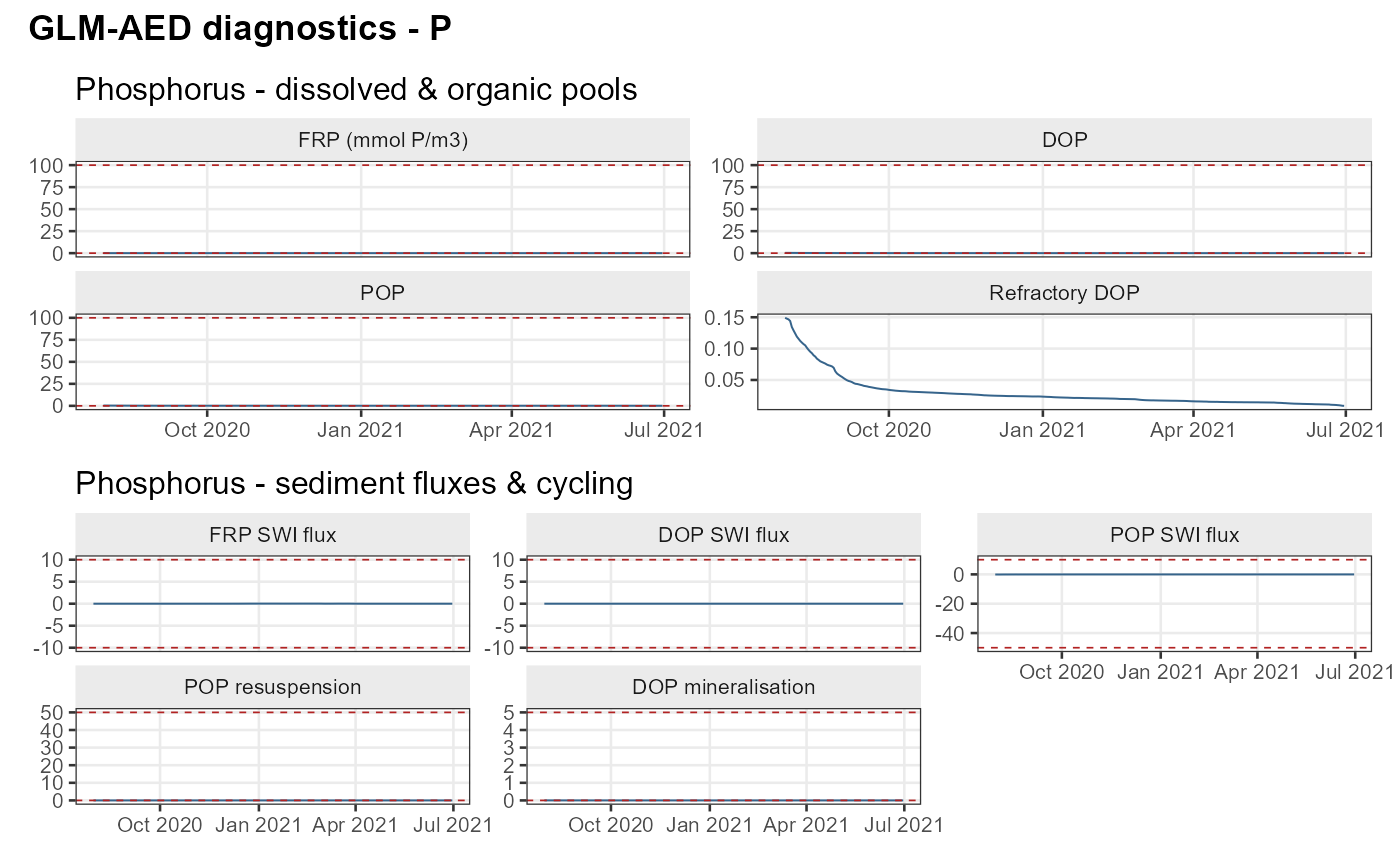

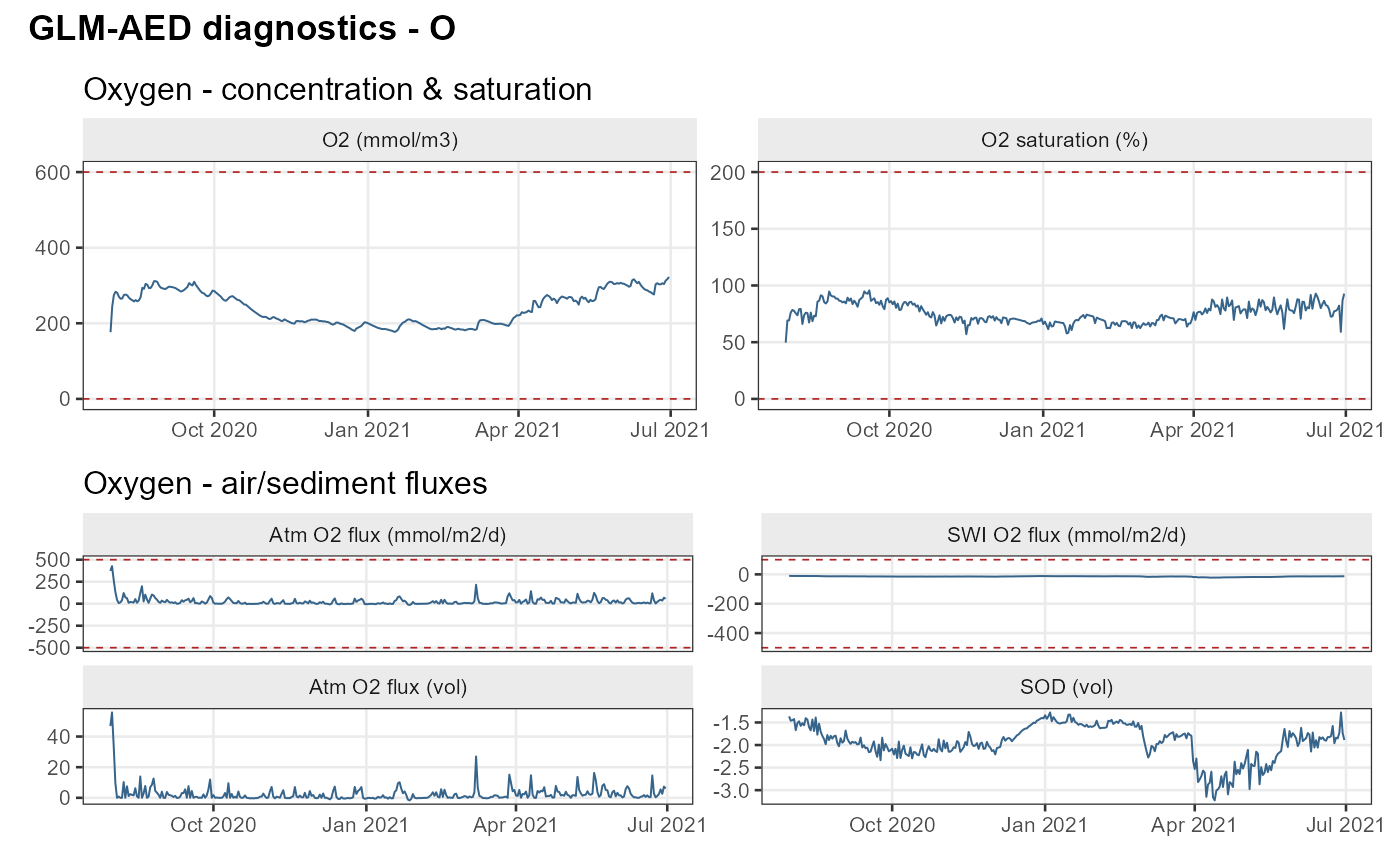

draw combined plots, grouped by element
- use_bounds
add dashed lines to plots showing expected bounds (from catalogue)
- print_table
print the kable summary
Examples
aeme_dir <- system.file("extdata/lake/", package = "AEME")
# Copy files from package into tempdir
path <- tempdir()
aeme <- yaml_to_aeme(path = aeme_dir, "aeme.yaml")
vars_sim <- c("HYD_strat", "HYD_temp", "HYD_thmcln", "HYD_schstb",
"CHM_oxycln", "CHM_oxynal",
"NIT_tn", "PHS_tp", "PHY_tchla")
model_controls <- get_model_controls(use_bgc = TRUE)
model_controls <- set_vars_sim(model_controls = model_controls,
vars_sim = vars_sim)
model <- c("glm_aed")
aeme <- build_aeme(path = path, aeme = aeme, model = model,
model_controls = model_controls,
ext_elev = 5, use_bgc = TRUE)
#> ℹ All columns already match AEME standard variable names, skipping name
#> guessing.
#> ℹ All columns already match AEME standard inflow variable names, skipping name
#> guessing.
#> Warning: ! `SIL_rsi`: SIL_rsi is constant across all rows — this may be a placeholder
#> value.
#> ℹ Check raw data or unit conversion for this variable.
#> Warning: ! 1 missing state variable in `FWMT`:
#> ✖ `ZOO_zoo1 `
#> ℹ Filled 1 missing variable with default value from `model_controls`.
#> ℹ Using observed water level.
#> ! Missing values in observed water level.
#> ℹ Correcting water balance using estimated outflows (method = 2).
#> ℹ Calculating lake level using lake depth and a sinisoidal function.
#> ℹ Building GLM-AED for lake wainamu
#> ℹ Copied in GLM nml file
#> ℹ Copied in AED nml file and supporting files
#> ℹ 15 replaced with 41.6285
#> ℹ Using default pH initialisation
#> ℹ 15 replaced with 16.6514
#> ℹ 225 replaced with 312.5
#> ℹ 2.25 replaced with 1.4279
#> ℹ 21 replaced with 21.4183
#> ℹ 6.96 replaced with 1.0709
#> ℹ 19.8 replaced with 7.1394
#> ℹ 0.008 replaced with 0.3229
#> ℹ 0.05 replaced with 0.3229
#> ℹ 0.05 replaced with 0.3229
#> ℹ PHY_cyano 10 replaced with 0.24022
#> ℹ PHY_diatom 8.4 replaced with 0.300275
#> ℹ PHY_green 0.04 replaced with 0.300275
#> ℹ 100 replaced with 1
#> ℹ Using default zooplankton initialisation
#> ✔ Updated GLM-AED models from: aed_sedflux, aed_oxygen, aed_silica,
#> aed_nitrogen, aed_phosphorus, aed_organic_matter, aed_phytoplankton,
#> aed_zooplankton, aed_macrophyte, aed_totals to: aed_sedflux, aed_oxygen,
#> aed_silica, aed_nitrogen, aed_phosphorus, aed_organic_matter,
#> aed_phytoplankton, aed_totals
#> ℹ Setting up AED aed_sed_const2d sediment zones: 2
#>
#> Tier 2: zone-median summer concentrations used for adjustment:
#> oxy amm nit frp
#> Zone1 0.075 0.078 0.010 0.004
#> Zone2 7.160 0.005 0.001 0.002
#> Tier 2 adjustments applied: fsed_amm (2 zones, direct NH4); fsed_frp (2 zones, direct FRP)
#>
#> === Sediment zone flux estimates (obs_adjusted) ===
#> n_zones: 2 | max lake depth: 13.07 m | ref_depth: 5 m
#>
#> zone height_lower_m height_upper_m depth_upper_m depth_lower_m mean_depth_m
#> 1 0.00 3.07 10 13.1 11.5
#> 2 3.07 19.00 0 10.0 5.0
#> area_m2 area_frac fsed_oxy fsed_amm fsed_nit fsed_frp
#> 43957 0.289 -38.8 5.835 -0.4 0.1035
#> 108386 0.711 -19.4 0.512 0.1 0.0259
#>
#> Lake-wide area-weighted average fluxes (for sanity check):
#> oxy amm nit frp
#> -25.007 2.050 -0.044 0.048
#> ✔ GLM nml validation completed - no issues detected.
aeme <- run_aeme(aeme)
#> ℹ Running models... (Have you tried parallelizing?) [2026-05-17 21:38:08]
#> → GLM-AED running... [2026-05-17 21:38:08]
#> ✔ GLM-AED run successful! [2026-05-17 21:38:11]
#> ✔ Model run complete! [2026-05-17 21:38:11]
out <- run_glm_aed_diagnostics(aeme = aeme)
#> Requesting 86 variables from model output... (sediment zone _Z variables are
#> optional; missing ones are skipped)
#>
#> === GLM-AED diagnostic summary ===
#> All diagnostics within expected ranges.
#>
#> -- Full summary --
#>
#>
#> |group |variable |label | min| median| mean| max| sd|flag |
#> |:------------------------|:---------------|:---------------------------|--------:|-------:|-------:|-------:|------:|:----|
#> |oxygen_state |OXY_oxy |O2 (mmol/m3) | 176.426| 233.781| 240.075| 322.492| 44.019|ok |
#> |oxygen_state |OXY_sat |O2 saturation (%) | 49.560| 73.746| 75.338| 95.715| 8.425|ok |
#> |oxygen_fluxes |OXY_oxy_atm |Atm O2 flux (mmol/m2/d) | -14.134| 11.722| 25.827| 427.104| 44.832|ok |
#> |oxygen_fluxes |OXY_oxy_atmv |Atm O2 flux (vol) | -1.688| 0.900| 2.576| 55.752| 5.371|ok |
#> |oxygen_fluxes |OXY_oxy_dsf |SWI O2 flux (mmol/m2/d) | -22.248| -14.172| -14.588| -9.977| 2.428|ok |
#> |oxygen_fluxes |OXY_oxy_dsfv |SOD (vol) | -3.227| -1.904| -1.940| -1.277| 0.390|ok |
#> |nitrogen_state |NIT_amm |NH4 (mmol N/m3) | 0.000| 0.004| 0.024| 0.111| 0.032|ok |
#> |nitrogen_state |NIT_n2o |N2O (mmol N/m3) | 0.011| 0.056| 0.253| 1.105| 0.334|ok |
#> |nitrogen_state |NIT_nit |NO3 (mmol N/m3) | 2.422| 3.877| 3.774| 4.530| 0.444|ok |
#> |nitrogen_state |NIT_no2 |NO2 (mmol N/m3) | 0.000| 0.014| 0.038| 0.143| 0.044|ok |
#> |nitrogen_organic |OGM_don |DON (mmol N/m3) | 0.371| 0.878| 2.455| 21.164| 3.850|ok |
#> |nitrogen_organic |OGM_donr |Refractory DON | 0.527| 1.315| 1.787| 8.946| 1.534|ok |
#> |nitrogen_organic |OGM_pon |PON (mmol N/m3) | 2.652| 3.217| 3.423| 7.086| 0.671|ok |
#> |nitrogen_transformations |NIT_anammox |Anammox | 0.000| 0.000| 0.001| 0.005| 0.001|ok |
#> |nitrogen_transformations |NIT_denit |Denitrification | 0.000| 0.000| 0.000| 0.000| 0.000|ok |
#> |nitrogen_transformations |NIT_dnra |DNRA | 0.000| 0.000| 0.000| 0.000| 0.000|ok |
#> |nitrogen_transformations |NIT_n2oprod |N2O production | 0.000| 0.002| 0.007| 0.063| 0.012|ok |
#> |nitrogen_transformations |NIT_nitrif |Nitrification | 0.000| 0.071| 0.110| 0.926| 0.151|ok |
#> |nitrogen_sediment_flux |NIT_amm_dsf |NH4 SWI flux | 0.135| 0.532| 0.701| 1.532| 0.514|ok |
#> |nitrogen_sediment_flux |NIT_n2o_atm |N2O atm flux | 0.000| 0.002| 0.018| 0.782| 0.062|ok |
#> |nitrogen_sediment_flux |NIT_n2o_dsf |N2O SWI flux | 0.000| 0.000| 0.000| 0.000| 0.000|ok |
#> |nitrogen_sediment_flux |NIT_nit_dsf |NO3 SWI flux | -0.032| 0.003| 0.011| 0.055| 0.030|ok |
#> |nitrogen_sediment_flux |NIT_no2_dsf |NO2 SWI flux | 0.000| 0.000| 0.000| 0.000| 0.000|ok |
#> |phosphorus_state |OGM_dop |DOP | 0.004| 0.012| 0.036| 0.319| 0.058|ok |
#> |phosphorus_state |OGM_dopr |Refractory DOP | 0.009| 0.022| 0.030| 0.149| 0.026|ok |
#> |phosphorus_state |OGM_pop |POP | 0.086| 0.111| 0.125| 0.321| 0.036|ok |
#> |phosphorus_state |PHS_frp |FRP (mmol P/m3) | 0.000| 0.001| 0.002| 0.010| 0.002|ok |
#> |phosphorus_fluxes |OGM_dop_min |DOP mineralisation | 0.000| 0.000| 0.000| 0.002| 0.000|ok |
#> |phosphorus_fluxes |OGM_dop_swi |DOP SWI flux | 0.000| 0.000| 0.000| 0.000| 0.000|ok |
#> |phosphorus_fluxes |OGM_pop_res |POP resuspension | 0.000| 0.000| 0.000| 0.000| 0.000|ok |
#> |phosphorus_fluxes |OGM_pop_swi |POP SWI flux | -0.093| -0.028| -0.032| -0.021| 0.010|ok |
#> |phosphorus_fluxes |PHS_frp_dsf |FRP SWI flux | 0.001| 0.003| 0.008| 0.025| 0.009|ok |
#> |phyto_biomass |PHY_cyano |Cyanobacteria | 0.030| 0.031| 0.112| 0.504| 0.136|ok |
#> |phyto_biomass |PHY_diatom |Diatoms | 0.030| 0.030| 1.618| 19.594| 4.002|ok |
#> |phyto_biomass |PHY_green |Greens | 0.305| 19.228| 22.932| 57.277| 17.140|ok |
#> |phyto_biomass |PHY_tchla |Total chl-a (ug/L) | 0.224| 5.995| 6.937| 17.144| 4.213|ok |
#> |phyto_biomass |PHY_tphy |Total phyto (mmol C/m3) | 0.786| 20.077| 23.145| 57.151| 14.030|ok |
#> |phyto_stoichiometry |PHY_cyano_NtoP |Cyano N:P | 11.499| 48.238| 45.319| 70.930| 14.623|ok |
#> |phyto_stoichiometry |PHY_diatom_NtoP |Diatom N:P | 11.447| 53.348| 48.752| 71.049| 14.894|ok |
#> |phyto_stoichiometry |PHY_green_NtoP |Green N:P | 11.551| 44.797| 42.067| 66.727| 13.218|ok |
#> |phyto_limitation |PHY_cyano_fI |Cyano fI | 0.014| 0.243| 0.232| 0.328| 0.060|ok |
#> |phyto_limitation |PHY_cyano_fNit |Cyano fN | 0.634| 0.987| 0.950| 0.997| 0.059|ok |
#> |phyto_limitation |PHY_cyano_fPho |Cyano fP | 0.000| 0.244| 0.315| 0.997| 0.292|ok |
#> |phyto_limitation |PHY_cyano_fT |Cyano fT | 0.439| 0.863| 0.826| 1.058| 0.157|ok |
#> |phyto_limitation |PHY_diatom_fI |Diatom fI | 0.034| 0.321| 0.307| 0.407| 0.065|ok |
#> |phyto_limitation |PHY_diatom_fNit |Diatom fN | 0.631| 0.978| 0.947| 0.997| 0.058|ok |
#> |phyto_limitation |PHY_diatom_fPho |Diatom fP | 0.000| 0.159| 0.246| 0.994| 0.292|ok |
#> |phyto_limitation |PHY_diatom_fT |Diatom fT | 0.638| 1.000| 0.958| 1.000| 0.059|ok |
#> |phyto_limitation |PHY_green_fI |Green fI | 0.014| 0.243| 0.232| 0.328| 0.060|ok |
#> |phyto_limitation |PHY_green_fNit |Green fN | 0.637| 0.991| 0.955| 1.000| 0.058|ok |
#> |phyto_limitation |PHY_green_fPho |Green fP | 0.039| 0.422| 0.440| 0.998| 0.258|ok |
#> |phyto_limitation |PHY_green_fT |Green fT | 0.638| 1.000| 0.958| 1.000| 0.059|ok |
#> |phyto_fluxes |PHY_gpp |GPP | 0.121| 0.985| 1.452| 6.976| 1.260|ok |
#> |phyto_fluxes |PHY_ncp |NCP | -0.057| 0.828| 1.233| 6.299| 1.153|ok |
#> |phyto_fluxes |PHY_set |Sedimentation | -13.444| -0.873| -1.623| -0.180| 2.277|ok |
#> |phyto_fluxes |PHY_upt_nh4 |NH4 uptake | 0.005| 0.037| 0.056| 0.262| 0.049|ok |
#> |phyto_fluxes |PHY_upt_no3 |NO3 uptake | 0.000| 0.000| 0.000| 0.000| 0.000|ok |
#> |phyto_fluxes |PHY_upt_po4 |PO4 uptake | 0.000| 0.000| 0.001| 0.011| 0.002|ok |
#> |sedflux_oxygen_Z |OXY_oxy_atm_Z |Atm O2 flux (per zone) | 0.000| 0.000| 0.000| 0.000| 0.000|ok |
#> |sedflux_oxygen_Z |OXY_oxy_dsf_Z |SWI O2 exchange (per zone) | -34.720| -15.532| -14.740| -0.025| 7.057|ok |
#> |sedflux_oxygen_Z |SDF_Fsed_oxy_Z |SDF O2 flux (per zone) | -38.800| -29.100| -29.100| -19.400| 9.707|ok |
#> |sedflux_nitrogen_Z |NIT_amm_dsf_Z |NH4 SWI flux (per zone) | 0.034| 0.249| 1.176| 5.206| 1.666|ok |
#> |sedflux_nitrogen_Z |NIT_n2o_atm_Z |N2O atm flux (per zone) | 0.000| 0.000| 0.000| 0.000| 0.000|ok |
#> |sedflux_nitrogen_Z |NIT_n2o_dsf_Z |N2O SWI flux (per zone) | 0.000| 0.000| 0.000| 0.000| 0.000|ok |
#> |sedflux_nitrogen_Z |NIT_nit_dsf_Z |NO3 SWI flux (per zone) | -0.306| 0.018| -0.029| 0.079| 0.113|ok |
#> |sedflux_nitrogen_Z |NIT_no2_dsf_Z |NO2 SWI flux (per zone) | 0.000| 0.000| 0.000| 0.000| 0.000|ok |
#> |sedflux_nitrogen_Z |SDF_Fsed_amm_Z |SDF NH4 flux (per zone) | 0.512| 3.173| 3.173| 5.835| 2.663|ok |
#> |sedflux_nitrogen_Z |SDF_Fsed_nit_Z |SDF NO3 flux (per zone) | -0.400| -0.150| -0.150| 0.100| 0.250|ok |
#> |sedflux_phosphorus_Z |OGM_doc_swi_Z |DOC SWI flux (per zone) | 0.014| 0.028| 0.037| 0.093| 0.024|ok |
#> |sedflux_phosphorus_Z |OGM_don_swi_Z |DON SWI flux (per zone) | 0.000| 0.000| 0.000| 0.000| 0.000|ok |
#> |sedflux_phosphorus_Z |OGM_dop_swi_Z |DOP SWI flux (per zone) | 0.000| 0.000| 0.000| 0.000| 0.000|ok |
#> |sedflux_phosphorus_Z |OGM_poc_swi_Z |POC SWI flux (per zone) | -9.994| -3.126| -4.232| -0.983| 2.381|ok |
#> |sedflux_phosphorus_Z |OGM_pon_swi_Z |PON SWI flux (per zone) | -2.576| -0.789| -0.714| -0.259| 0.392|ok |
#> |sedflux_phosphorus_Z |OGM_pop_swi_Z |POP SWI flux (per zone) | -0.117| -0.030| -0.026| -0.008| 0.015|ok |
#> |sedflux_phosphorus_Z |PHS_frp_dsf_Z |FRP SWI flux (per zone) | 0.000| 0.001| 0.013| 0.089| 0.025|ok |
#> |sedflux_phosphorus_Z |SDF_Fsed_frp_Z |SDF FRP flux (per zone) | 0.026| 0.065| 0.065| 0.104| 0.039|ok |
#> |sedflux_organic_Z |OGM_poc_res_Z |POC resuspension (per zone) | 0.000| 0.000| 0.000| 0.000| 0.000|ok |
#> |sedflux_organic_Z |OGM_pon_res_Z |PON resuspension (per zone) | 0.000| 0.000| 0.000| 0.000| 0.000|ok |
#> |sedflux_organic_Z |OGM_pop_res_Z |POP resuspension (per zone) | 0.000| 0.000| 0.000| 0.000| 0.000|ok |
#> |sedflux_organic_Z |OGM_toc_sed_Z |TOC sed mass (per zone) | 0.000| 0.000| 0.000| 0.000| 0.000|ok |
#> |sedflux_organic_Z |OGM_ton_sed_Z |TON sed mass (per zone) | 0.000| 0.000| 0.000| 0.000| 0.000|ok |
#> |sedflux_organic_Z |OGM_top_sed_Z |TOP sed mass (per zone) | 0.000| 0.000| 0.000| 0.000| 0.000|ok |
#> |sedflux_organic_Z |PHY_phy_swi_c_Z |Phyto SWI C (per zone) | -133.755| -5.456| -10.621| -0.468| 18.218|ok |
#> |sedflux_organic_Z |PHY_phy_swi_n_Z |Phyto SWI N (per zone) | -9.043| -0.380| -0.731| -0.033| 1.235|ok |
#> |sedflux_organic_Z |PHY_phy_swi_p_Z |Phyto SWI P (per zone) | -0.328| -0.009| -0.023| -0.002| 0.045|ok |
#> |sedflux_silica_Z |SIL_dsf_rsi_Z |Si SWI flux (per zone) | 0.002| 0.005| 0.072| 0.866| 0.183|ok |
